Smart Mist MagicR
Mist Collector
Introducing a world-first, new from filterless structure.
Onikaze's "Magic Separator" structure
The"Magic Separator" is a unique new technology of Onikaze.
Developed through long years of industry experience, it is a completely new centrifugal separation system that will not create extra burden for the work site.

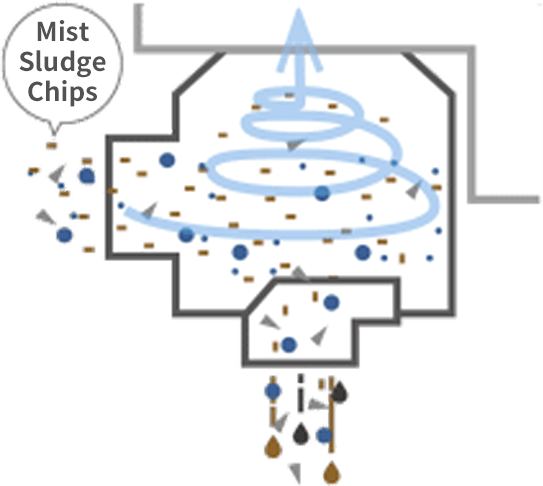

The structure was designed with the aim of using aerodynamics to avoid internal waste accumulation, and it also features a self-cleaning function which discharges without allowing the sucked mist, sludge and
chips to collect inside the main body.

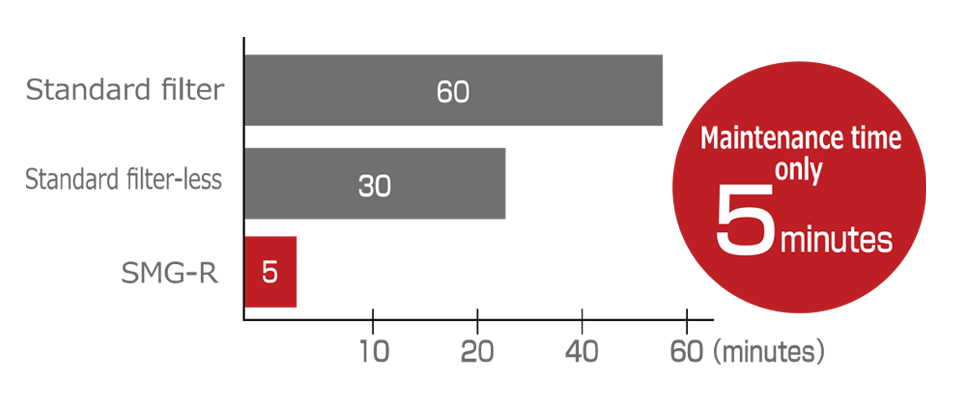

Easy mentenance
- Discharges without accumulation or sollection inside the main body.
Smart Mist Magic-R greatly reduces the effort and time needed for maintenance.
Energy saving
-
Environmentally-friendly
energy-saving structure It can reduce the CO2 emission and energy consumption by about up to 50% compared to general mist collectors.
We investigated the structure aerodynamically and minimized the resistance in the main body,a motor one size amaller than the conventional ones can be used. * Equivalent product: Comparison with general mist collectors
* Calculated on condition that the mist collectors are operated 20 hours a day,
300 days a year (CO2 emission: 0.453kg/kWh, 1kWh = 16 yen).
Self-cleaning function
- SMG-R has a unique shape that enables long time performance.
Features a self-cleaning function which discharges without allowing the sucked mist, sludge and chips to accumulate inside the main body.
Internal structure
Maintenance video
Specifications
| Type | SMG-20R | SMG-40R | SMG-100R | SMG-150R | |||
|---|---|---|---|---|---|---|---|
| Power source | AC200/220V 3φ 50/60Hz |
||||||
| Electric motor | 0.2kW 2Pole | 0.4kW 2Pole | 0.75kW 2Pole | 1.5kW 2Pole | |||
| Performance | Discharge air capacity（m3/min） | 4/5 | 8/9.6 | 12.2/15 | 21/25 | ||
| Discharge static pressure （Pa） | 850/1200 | 1050/1500 | 1280/1850 | 1730/2500 | |||
| Sound level（dB(A)） | 61/65 | 64/69 | 71/72 | 70/73 | |||
| Collecting efficiency（gravimetric method） | 99％ | ||||||
| Weight（Kg） | 26 | 37 | 58 | 83 | |||
| Suction caliber（φ） | 98 | 123 | 148 | 198 | |||
| Discharge caliber（φ） | 123 | 148 | 198 | 198 | |||
| Intake temperature | MAX75℃ with ambient temperature below 40℃ |
||||||
| Paint Color | (Main Body) N-93 (White all gloss) Munsell 9.3 approximate |
||||||
| Paint Color | (pre-conditionimg part, motor Installation board, stand) N-10 approximate(black 30% gloss) Munsell 1.0 approximate |
||||||
| Outside dimention（W×D×H）（mm） | 353×480×641 | 422×580×751 | 508×693×842 | 564×848×1002 | |||
| RoHS compliance | All compliant | ||||||
Installation example
On-machine
On-Base stand(The product in the photo is a "Heavy Smoker")
